Surface mounted downlight
HDS-SMD-20W
COB downlight
12W 20W 30W 40W
100lm/w CRI>80
12W 20W 30W 40W
100lm/w CRI>80
Quantity:

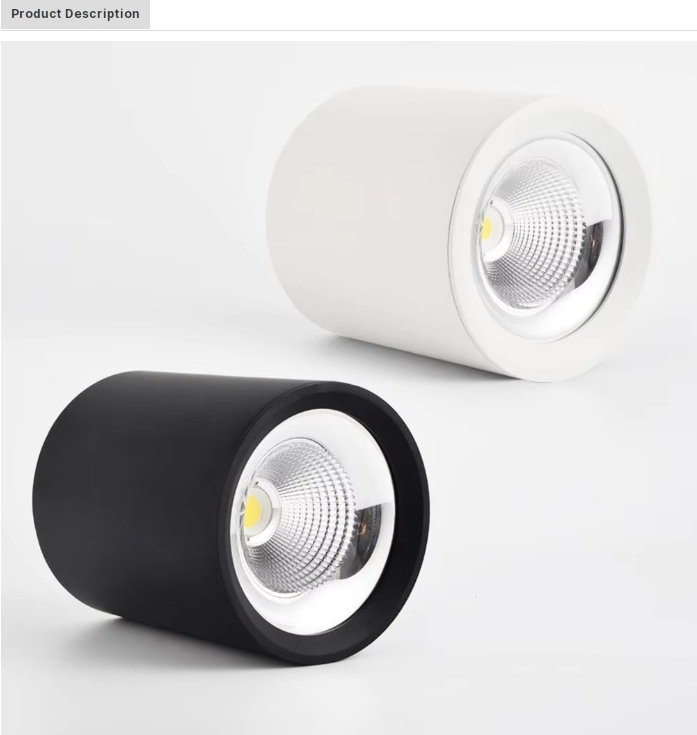

COB surface mounted downlight
Power: 15W 25W 35W 12W 20W 30W 40W

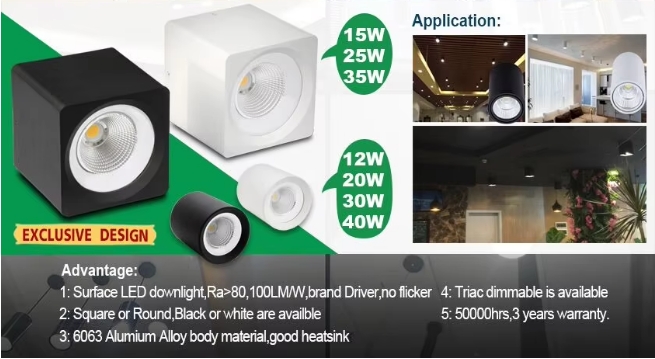

Advantage of surface downlight:
1.Surface LED downlight, Ra>80, 100lm/w, brand Driver, no flicker.
2.Square or round, black or white are avaible.
3.6063 Aluminum alloy boody material, good heatsink.
4.Triac dimmable is available.
5.50000hrs, 3 years warranty.

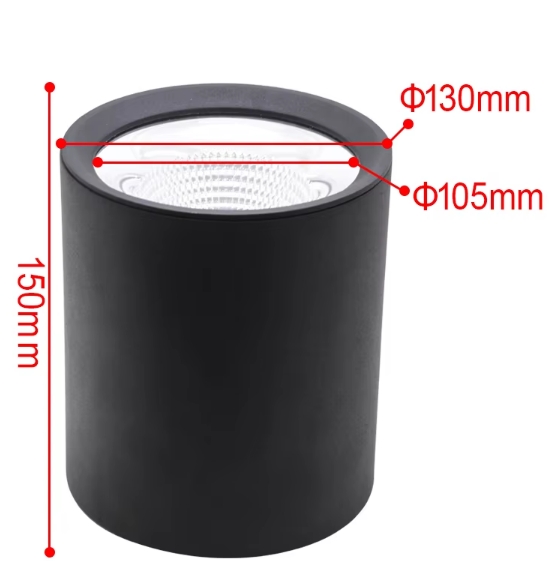

Product Size

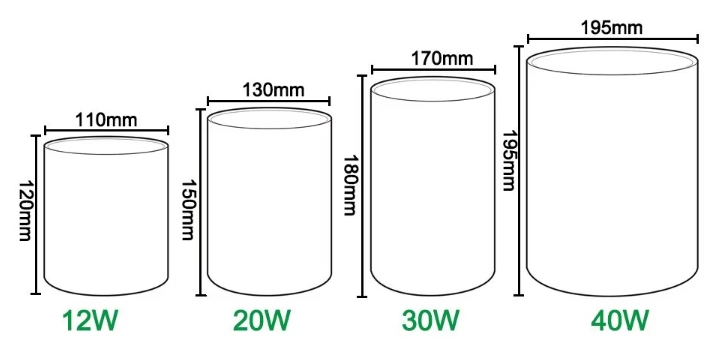

10W 20W 30W 40W downlight product size
| Power | 12W 20W 30W 40W | Working Voltage | AC175-265V |
| CCT | 2700K 4000K 6000K | Luminous Effiency(lm/w) | 100 |
| CRI(Ra>) | 80 | Lifespan | 50000h |
| Materials | Aluminum | Operating Temperature | -20-50℃ |
| Warranty | 5 Years | Install Style | Suspended |
Product parameters of COB surface mounted downlight

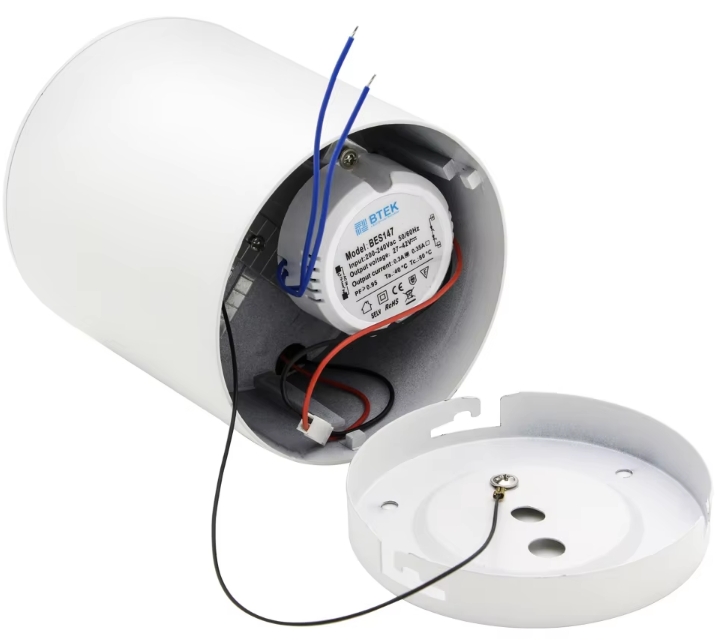

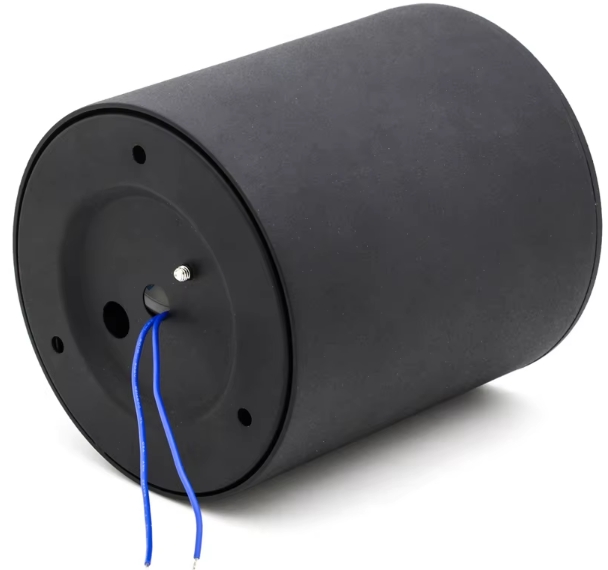

Protect Details of surface downlight
CRI>80 of COB downlight

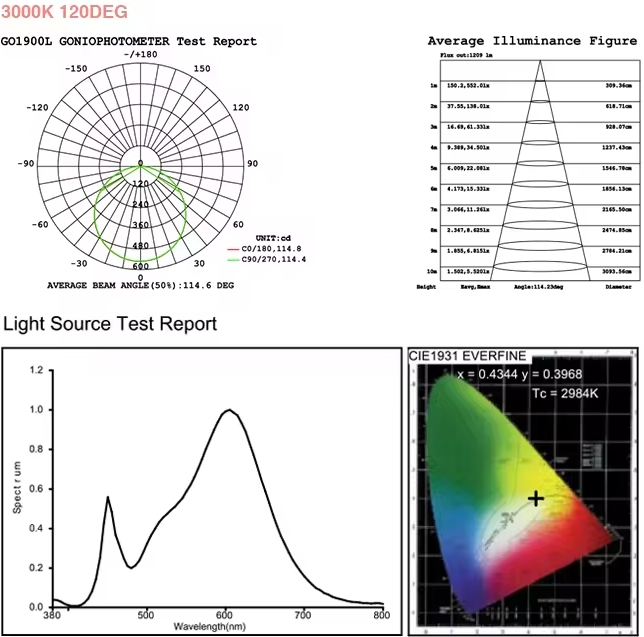

Light source test report with COB surface mounted downlight

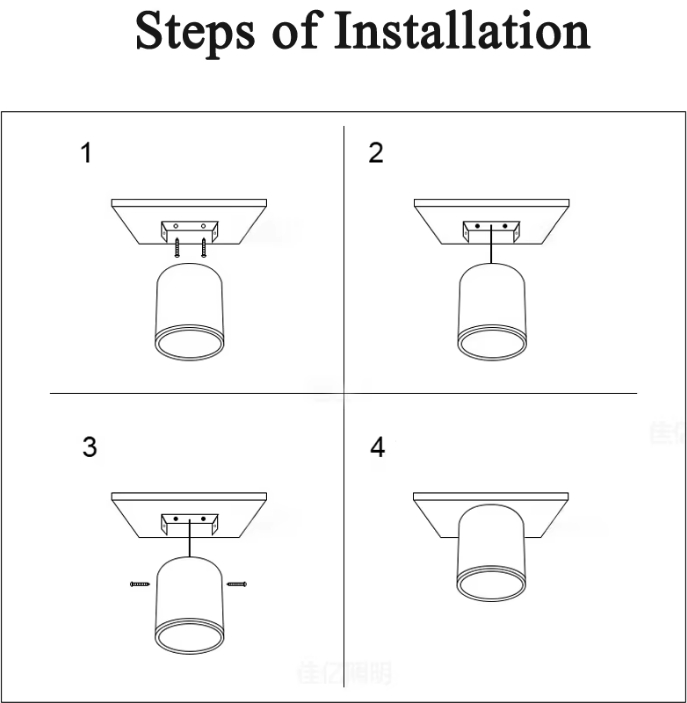

COB downlight Installation steps

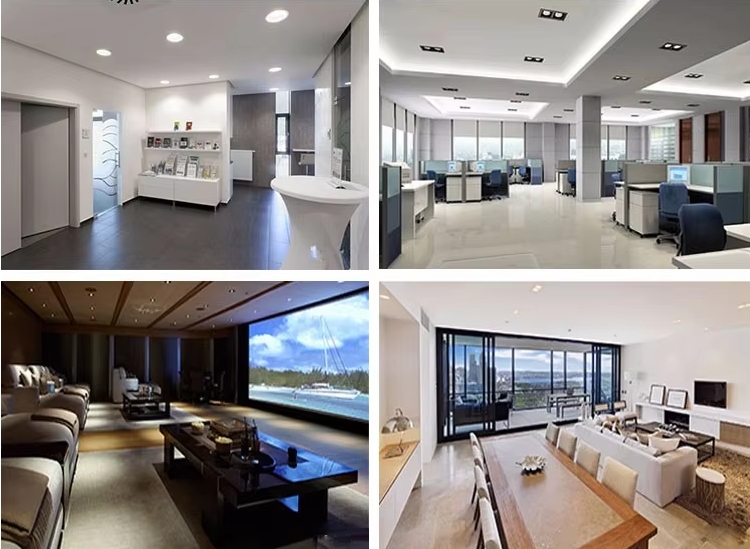

Application Site with COB downlight
Office, bedroom, etc.
Packaging, shipping with surface downlight
