Surface mounted panel light frame

Surface mounted Aluminum led panel frame for ceiling in European Market

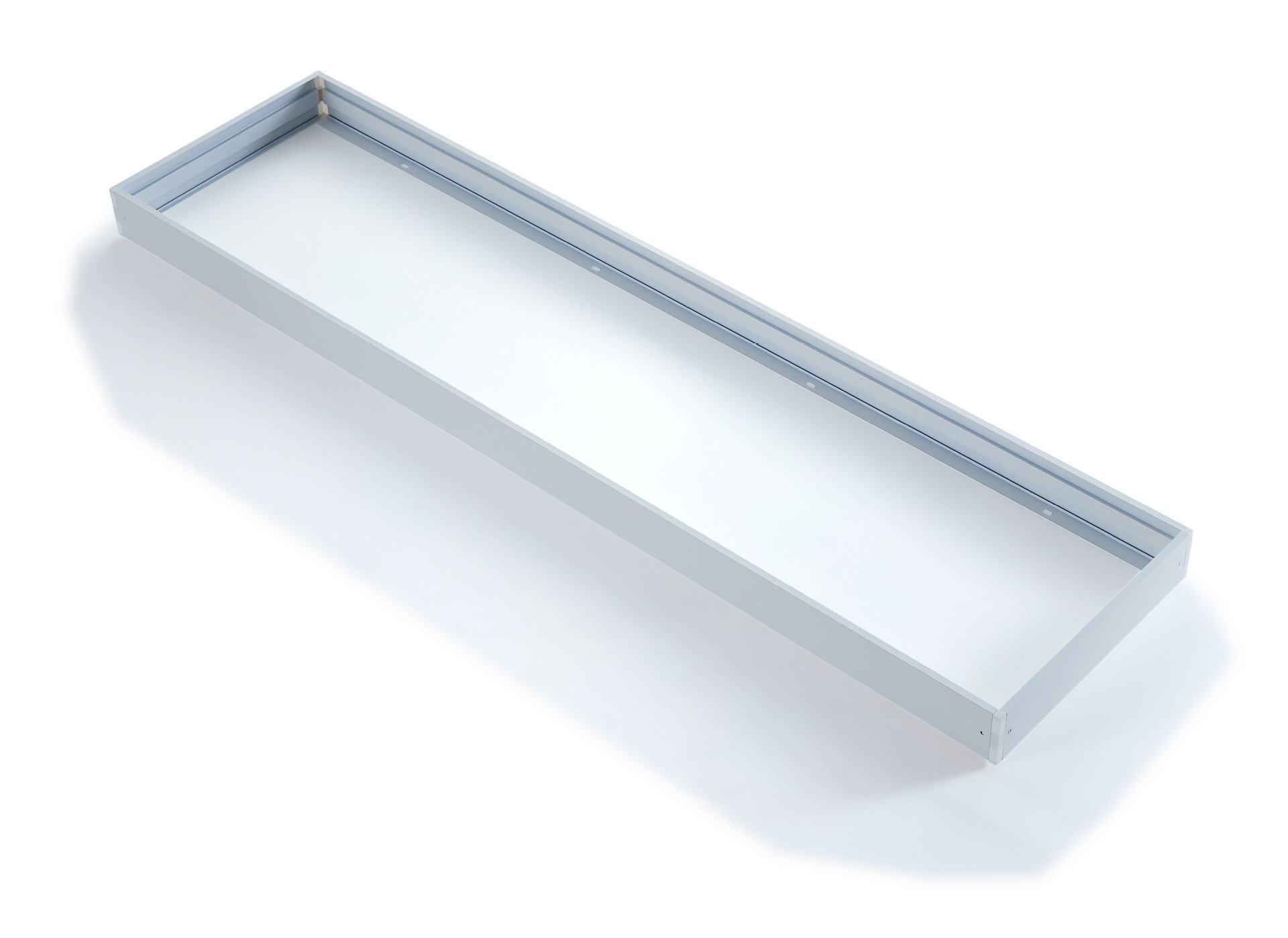

600x600 led panel frameue to the standardised dimensions, the led panel mounting frame offered by us can be easily integrated into many system ceilings. This does not only apply to the new construction of system ceilings. Existing old grid lights can also be easily replaced with our Surface mounted led panel frame.

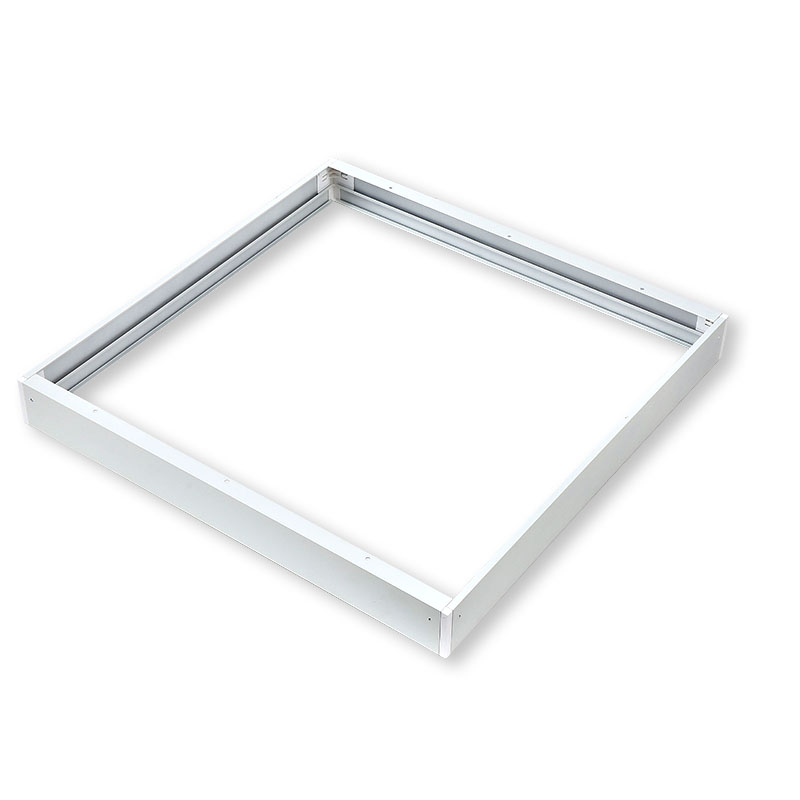

600x600 surface frame
Using the mounting frame offered by us, our grid recessed led panel luminaires can even be installed without a system ceiling. Thus, everyone can take advantage of the benefits of our LED edge panel lights for themselves.

600x600 surface frame

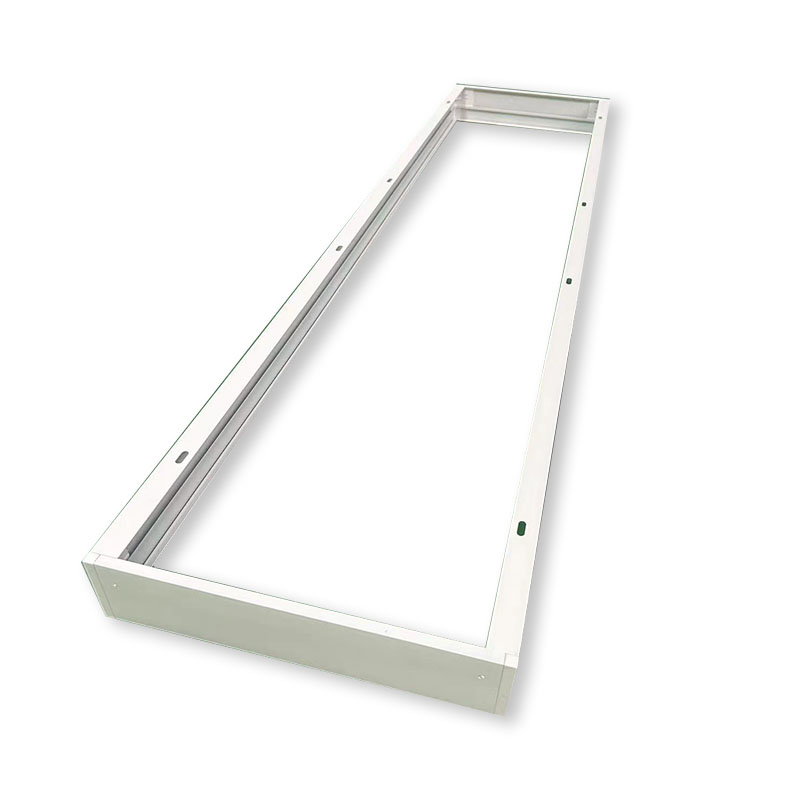

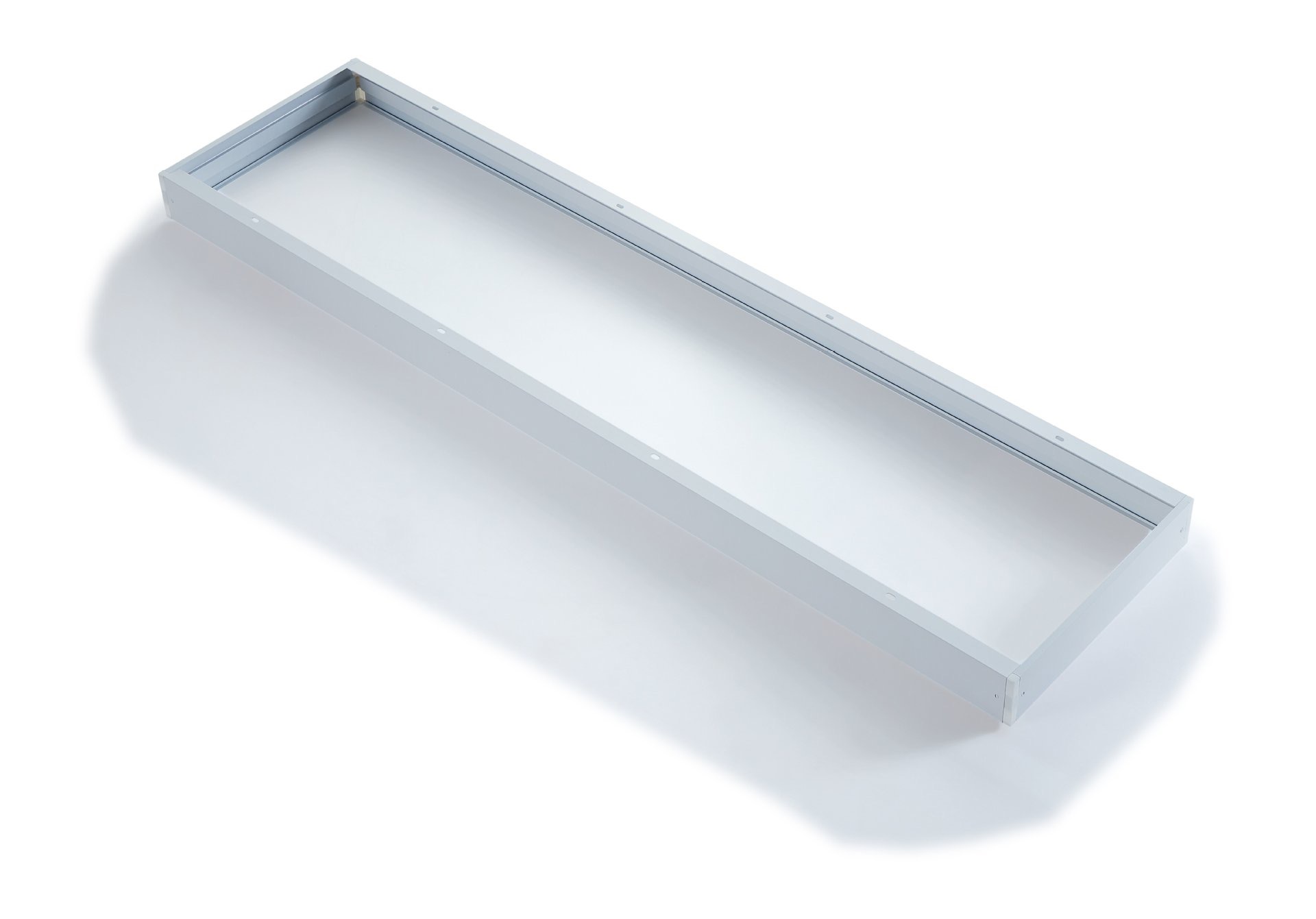

Mostly suspended ceilings are used as system ceilings. The common grid formats are often 600mm x 600mm or 620mm x 620mm (known for Odenwald ceilings). Alternatively and for special applications there are special shapes of e. g. 300mm x 1200mm. The alumimun 600x600 surface frame led panel frame can support all sizes.

600x600 led panel frame

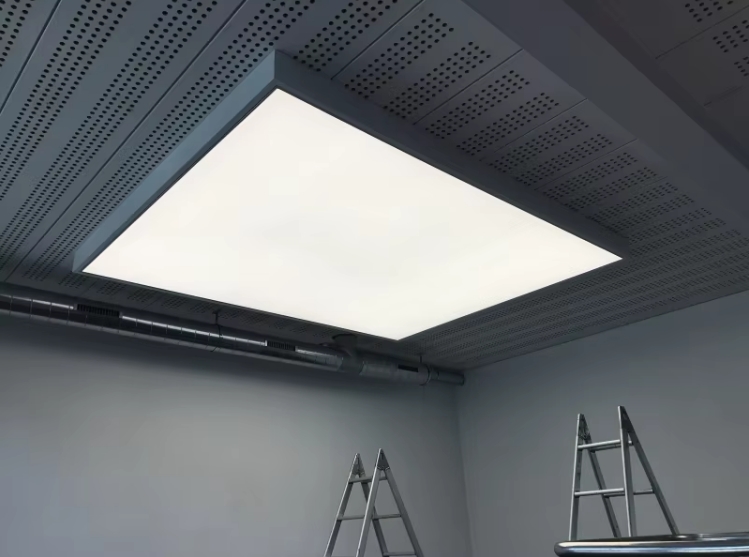

Exhibition halls or warehouses often contain pure concrete ceilings.There the LED panels can be mounted directly under the ceiling using a mounting frame, or they can be suspended in our frame and suspension accessories kits.

led panel mounting frame

600x600 surface frame





Installation drawing of 600x600 led panel frame

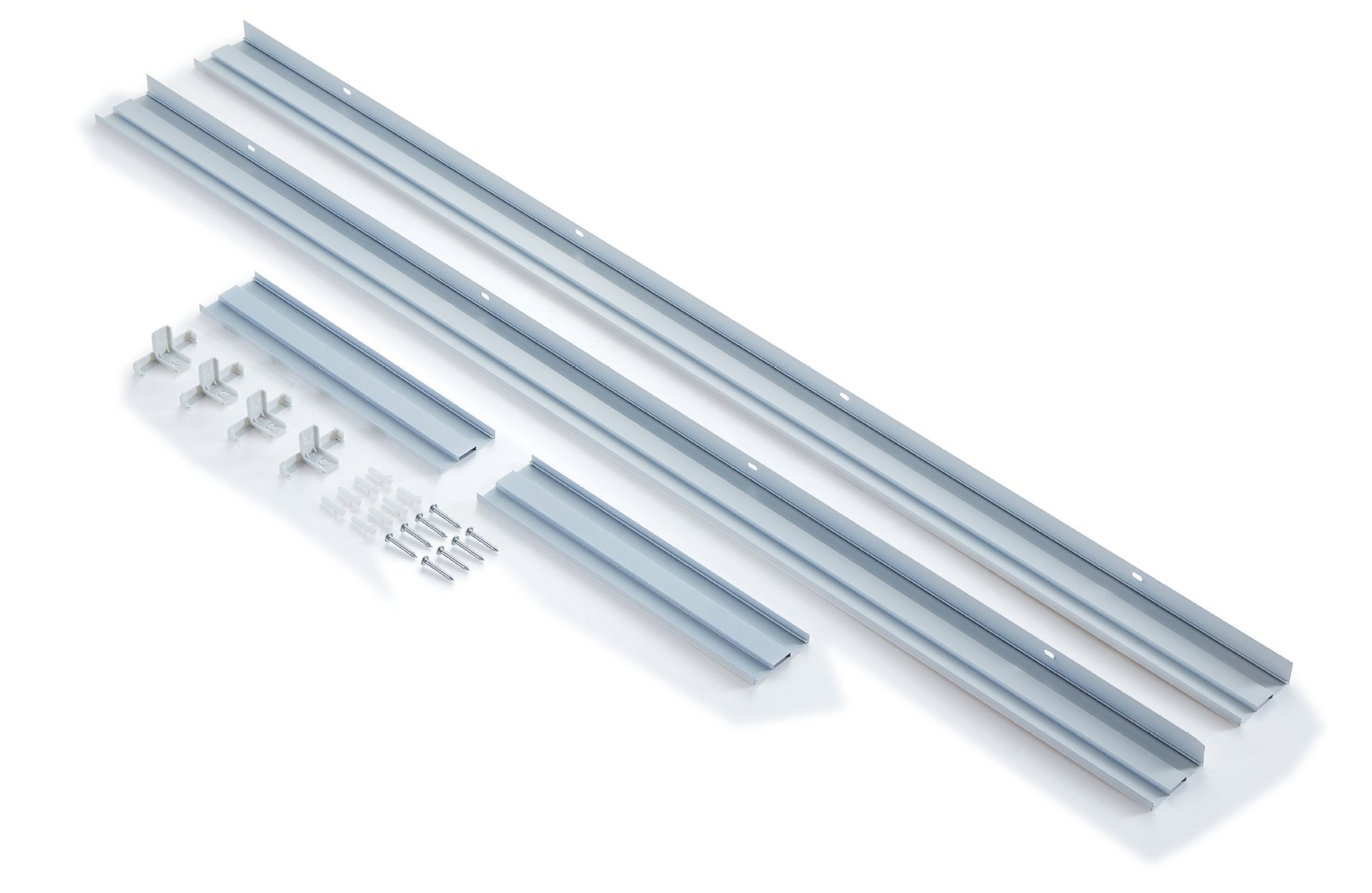

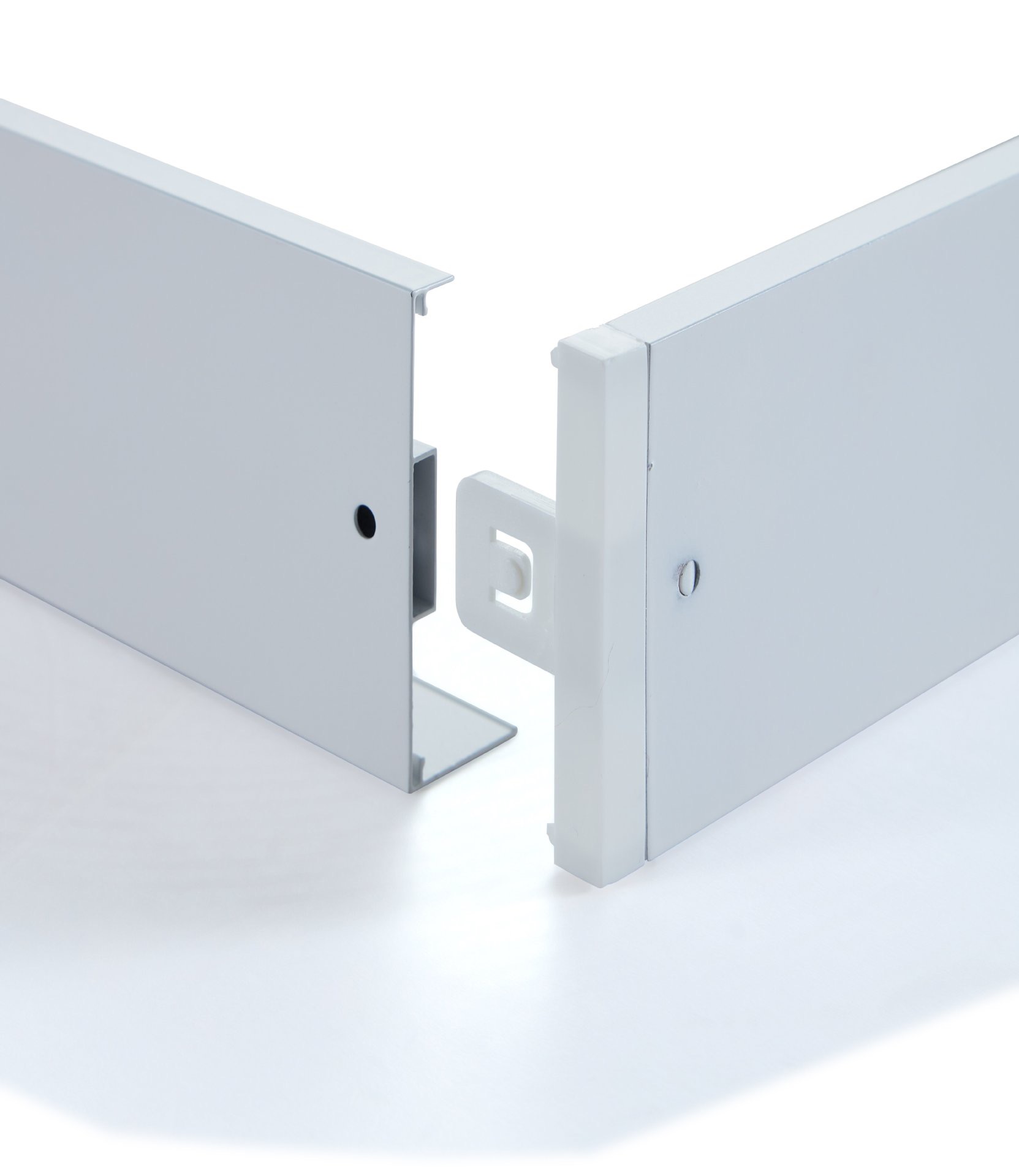

Detailed image

600x600 surface frame

Suitable for edge-lit panel and backlit panel

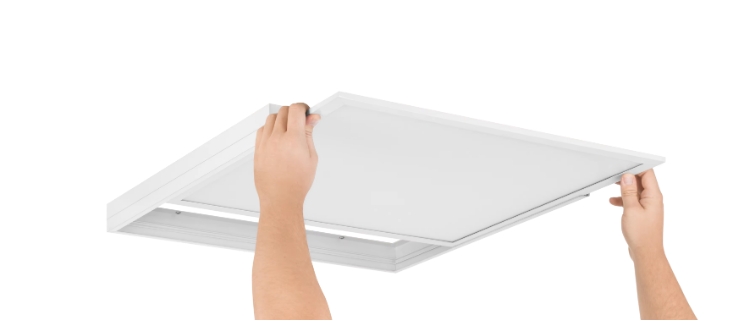

The600x600 surface frame can be used for the led panel directly as the installation.

And it also can used for some pure concrete system ceiling, or some metal and wooden ceiling as the assistant device for surface mounted the led panel or suspension the led panel...etc.
